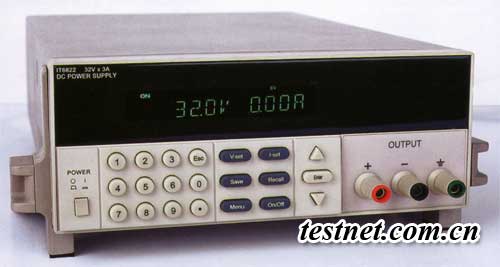

可编程直流电源供应器 IT6800系列 [台湾艾德克斯]
【名称】可编程直流电源供应器
【型号】IT6800系列
【厂商】台湾艾德克斯(台湾)
【简介】IT6800系列可编程直流电源供应器(54W 到 180W)

已有[7020]人浏览
IT6800 Programmable Power Supply(54W to 180W)/IT6800系列可编程直流电源供应器(54W 到 180W)
IT6800 series programmable DC power supply are high performance single-output DC power sources.They are equipped with VFD displays and numeric keypads for ease of use & quick operating.Voltage and current can be displayed on the VFD or computer screen.It can be operated at constant current mode,constant voltage mode.It also can be set with maximum limit for Voltage output.Up to 16 individual settings may be applied & stored in memory for fast recall.ITECH also offers you quick programming and calibration software(PV6800PC6800)for ease of programming and calibration.

Liner Programmable DC Power Supply
VFD Display
High accuracy and high regulation
Low ripple and noise
Small size and light weight be installed in Standard 19" rack
Remote control via USB/RS232/GPIB
线性程控稳压电源
高可见度真空萤光VFD显示屏
高分辨率及精度
低纹波及噪声
超小体积,适合桌上及机架安装
支持USB/RS232/GPIB通讯

IT6800系列可编程直流电源供应器为新一代测试仪器,性能优越,为目前自动化测试提供全面的解决方案。该仪器提供超大的高可见度的真空荧光VFD显示屏,便捷的操作接口,定电压/定电流模式,开机自检以及全面的保护功能,并可通过RS232/USB/GPIB进行远端操作,能很好的适应生产现场检验的需要和实验室高精确度和高稳定度的测试需要。

Option Accessory
IT-E131 communication cable(RS232)
IT-E132 communication cable(USB)
IT-E133 Communication cable(GPIB)
IT-E151 19" rack mount
PV6800 Programming Software is a easy-operation graphical user interface for the IT6800 series power supplyPC6800 Calibration Software is a convince one for calibrate the instrument and print the
calibration report automatically
可选附件
IT-E131 RS232 编程电缆
IT-E132 USB  编程电缆
IT-E133 GPIB 转接器
IT-E151 19寸机柜支架
PV6800编程软件
用户除了可以实现所有电源面板操作功能,通过这个软件可以提供方便强大的自动化测试功能
PC6800软件方便用户快速校准仪器,并可以打印相应 的测试报表
